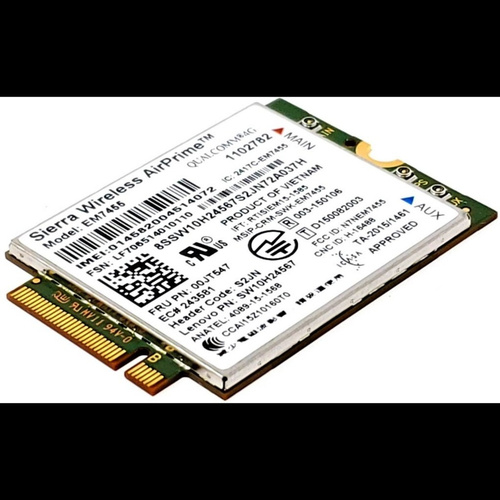

ماژول سیم کارت لپ تاپ مدل Sierra Wireless AirPrime® EM7455

Product Details & Tech Facts

Description

The Sierra Wireless EM7455 Embedded Module is an LTE Cat 6 M.2 module that provides LTE, UMTS, and GNSS connectivity for notebook, ultrabook, tablet computers, and M2M applications over 15 different LTE radio frequency bands globally with primary target area Americas and EMEA.

The EM7455 will allow a maximum downlink speed of 300 Mbps and a maximum uplink speed of 50 Mbps, including LTE Advanced, with automatic fall back to 3G networks.

You might also be interested in Sierra Wireless' newer Cat-7 EM74x1;

11095, Sierra Wireless EM7421 EMEA/APAC

11092, Sierra Wireless EM7411 NAM

Form Factor

M.2 3042

UMTS Bands

B1 (2100)

B2 (1900)

B3 (1800)

B4 (AWS)

B5 (850)

B8 (900)

GNSS technology

GPS

GLONASS

BeiDou

Carrier Certification

AT&T

T-Mobile

Verizon

US Cellular

Sprint

Bell

Rogers

Telus

Vodafone

Data Interface

USB 3.0

USB 2.0

SIM interface

Through M.2 connector

Dual SIM interface

Primary Technology

LTE - cat 6

Max DL Speed

300 Mbps

GNSS antenna support

Passive

Active 3.3VDC

Operating Temperature Range

-40 - 85 °C

Voice Call Support

No

Size

42 x 30 x 2.3 mm

LTE Bands

B1 (FDD 2100)

B2 (FDD 1900)

B3 (FDD 1800)

B4 (FDD 1700 / AWS)

B5 (FDD 850)

B7 (FDD 2600)

B12 (FDD 700ac)

B13 (FDD 700c)

B20 (FDD 800DD)

B25 (FDD 1900)

B26 (FDD 850)

B29 (SDL 700)

B30 (FDD 2300)

B41 (TDD 2500)

Max UL Speed

50 Mbps

Antenna Connectors

IPEX MHF-4

Extended Operating Temperature Range

-40 - 85 °C

Driver Support

Windows 10

Linux

Android

Windows 8.1

Windows 7

Region

Europe

North America

South America

Asia

Africa

GNSS

Yes

Certification

CE RED

CE

FCC

IC

PTCRB

GCF

NCC

ANATEL

Chipset

Qualcomm

MDM9230

FOTA Firmware Updates

Yes
