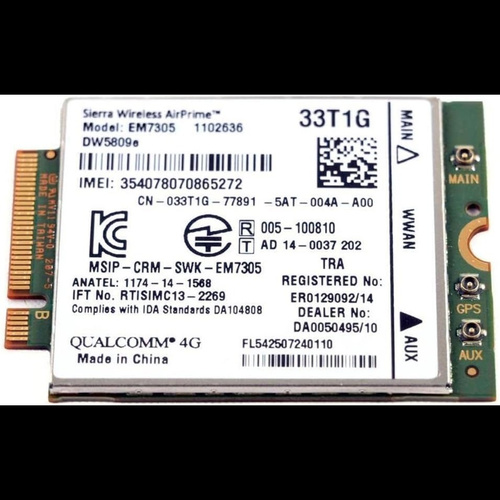

ماژول سیم کارت لپ تاپ مدل DELL DW5809E Sierra Wireless AirPrime EM7305 4G

Product Details & Tech Facts

Description

The Sierra Wireless EM7305 Embedded Module is an M.2 modem that provides LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE, and GNSS connectivity for notebook, ultrabook, and tablet computers over several radio frequency bands. The device also supports 2G / 3G roaming.

LTE Bands

B1 (FDD 2100)

B3 (FDD 1800)

B7 (FDD 2600)

B8 (FDD 900)

B20 (FDD 800DD)

UMTS Bands

B1 (2100)

B2 (1900)

B5 (850)

B8 (900)

GNSS

Yes

Certification

CE RED

CE

FCC

GCF

NCC

Chipset

Qualcomm

Size

42 x 30 x 2.3 mm

Form Factor

M.2 3042

GSM/EDGE Bands

B2 (1900)

B3 (1800)

B5 (850)

B8 (900)

GNSS technology

GPS

GLONASS

Carrier Certification

Vodafone

Telefonica

Orange

Telstra

Data Interface

USB 2.0

Primary Technology

LTE - cat 3

Max DL Speed

100 Mbps

GNSS antenna support

Passive

Operating Temperature Range

-25 - 60 °C

Voice Call Support

No

Region

Europe

Asia

Australia

Max UL Speed

50 Mbps

Antenna Connectors

IPEX MHF-4

Extended Operating Temperature Range

-25 - 60 °C

Driver Support

Windows 10

Linux

Windows 8.1

Windows 8

Windows 7
